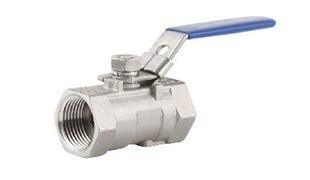

1-PC BALL VALVE
MODEL : BT-1R
SIZE: 1/4” – 3” REDUCED BORE (800 PSI)
THREADED : BSPT. BSP. NPT. DIN2999
MATERIALS : CF8M (SS316)
FREATURES:
INVESTMENT CASTING BO...

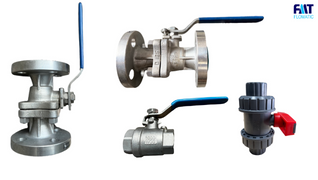

BALL VALVE
Tags: ballvalve
A ball valve consists of a valve body in which a large sphere with a central hole equal to the inside diameter of the pipe is mounted. As the ball is rotated, in the fully open position the valve provides the through conduit or full bore required for unrestricted flow of the fluid
APPLICATION
Ball Valves are an excellent choice for industrial and commercial plumbing applications. They are a full flow design and are lead free making them an excellent choice for high pressre water systems.
FEATURES
APPLICATION
Ball Valves are an excellent choice for industrial and commercial plumbing applications. They are a full flow design and are lead free making them an excellent choice for high pressre water systems.
FEATURES
- INVESTMENT CASTING BODY AND CAP
- WORKING PRESSURE 1/4”-2” 1000 PSI, 2”-4” 800 PSI
- ADJUSTABLE STEM PACKING
- PURE TEFLON SEALS AND SEATS
- TEMPERATURE RANGE: -60 TO 450⁰F
- BLOW-OUT PROOF STEM
- 100% LEAKAGE TESTED AT 100 PSI AIR UNDER WATER
- HYDROSTATIC TEST PRESSURE: 1/4”-2” 1500 PSI, 1/2”-4” 1200 PSI
- LOCKING DEVICE (OPTIONAL)
-
-

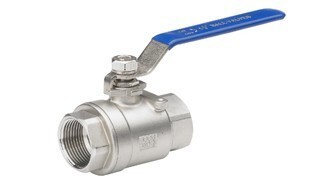

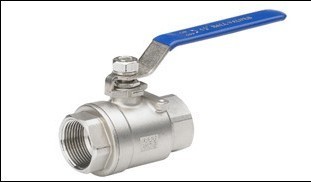

2-PC BALL VALVE MODEL : BT-2F SIZE: 1/4” – 3” FULL BORE (1000 PSI) THREADED : BSPT. BSP. NPT. DIN2999 MATERIALS : CF8M (SS316) DIN 1.4408 FREATURES: INVESTMENT CASTING...
-

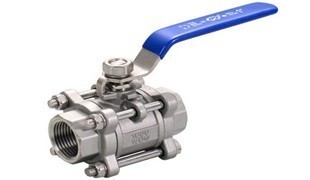

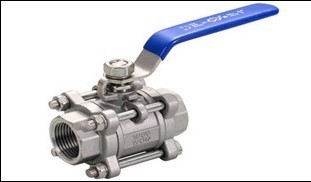

3-PC BALL VALVE MODEL : BT-3F SIZE: 1/4” – 4” FULL BORE (1000 PSI) THREADED : BSPT. BSP. NPT. DIN2999 MATERIALS : CF8M (SS316) DIN 1.4408 ...
-
3-PC BALL VALVE MODEL : BT-3FN SIZE: 1/4” – 4” FULL BORE (1000 PSI) THREADED : BSPT. BSP. NPT. DIN2999 MATERIALS : CF8M (SS316) DIN 1.4408 FREATURES: INVESTMENT CASTING ...
-
3-PC BALL VALVE MODEL : BT-V31B SIZE: 1/4” – 4” FULL BORE (1000 PSI) THREADED : BSPT. BSP. NPT. DIN2999 MATERIALS : CF8M (SS316) DIN 1.4408 FREATURES: INVESTMENT CASTING...
-
3-PC BALL VALVE MODEL : BT-V31B SIZE: 1/4” – 4” FULL BORE (1000 PSI) THREADED : BSPT. BSP. NPT. DIN2999 MATERIALS : CF8M (SS316) DIN 1.4408 FREATURES: INVESTMENT CASTING...
-
3PC Ball valve ferruleBody : SS316 Ball : SS316 Seat : PTFEConnection : Double FerruleSize : 1" - 2"
-
WAFER BALL VALVE BODY : SS316FLANGE : PN16 / PN40SIZE : 1/2'' - 2''
-
BT-V21 ( T-Port, L-Port ) SIZE: 1/4”-2” SCREWED END FEATURES: BODY & CAP IN ASTM A351-CF8M, ASTM-A351-CF8, ASTM-A216-WCB THRIM IN AISI 316 ANTI-STATIC DEVICE BLOW-OUT PROOF S...
-
3 Way Ball ValvePort Option – “L” / “T”Size : 2-½” to 6”Bore : Full BoreEnd Connection : Flanged EndRating : 150#Flange Drilling : ANSI B 16.5/BS 10/PN/JISOperation : Lever/Gear/Pn...
-
Body : SCS13A Ball : SCS13A Seat : PTFE Connection : Flange JIS 10K
-
1. MaterialSS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.2. Size1/2~8 inch ( DN15~DN200)3. Thread standardISO9001 & CE4. PortFull Port,Reducer Port5. Working Pressure150LB...
-
-
Body : SCS14A Ball : SCS14A Seat : PTFE Connection : Flange JIS 10K
-
-
-

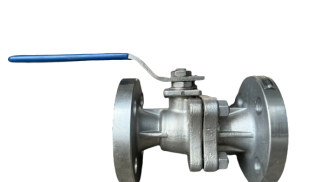

CLASS 150-1500 FLOATING BALL VALVE BOLTED BONNET, TWO-PIECE BODY, FLOATING BALL FULL OR REDUCED BORE, BLOWOUT PROOF STEM FIRE SAFE AND ANTI STATIC STAINLESS STEEL BALL ASTM A216 WC...
-

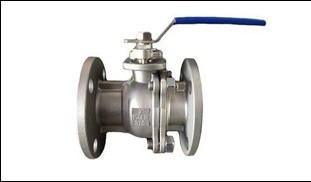

Body : Cast Steel Ball : SS304 Seat : PTFE Connection : Flanged PN10/PN16
-
CAST IRON FLANGE BALL VALVE CLASS 150LB MAIN PART AND MATERIALS PARTS NAME: CAST IRON BODY: CAST IRON BONNET: CAST IRON LEVER: CAST IRON SEAT: PTFE BALL/STREAM: ST.ST CLASS150 SIZ...
-
MAIN PART AND MATERIALS PARTS NAME: CAST IRON BODY: CAST IRON BONNET: CAST IRON LEVER: CAST IRON SEAT: PTFE BALL/STREAM: ST.ST CLASS150 SIZE:1/2”-8” (DN15-DN200) WORKING TEMPERATU...
-
BT-V3MH SIZE: 1/4”-4” SCREWED END BUTT WELD END SOCKET WELD END FEATURES: PIPE THREAD IN ACCORDANCE WITH ANSI B2.I, BS21 1973, DIN259/2999, ISO 288 LUG BODY BLOW-OUT PROOF STEM/F...
-
BT-V3MHSIZE: 1/4”-4”SCREWED ENDBUTT WELD ENDSOCKET WELD ENDFEATURES:PIPE THREAD IN ACCORDANCE WITH ANSI B2.I, BS21 1973, DIN259/2999, ISO 288LUG BODYBLOW-OUT PROOF STEM/FULL PORTIN...
-

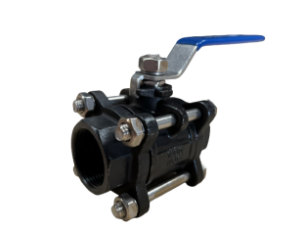

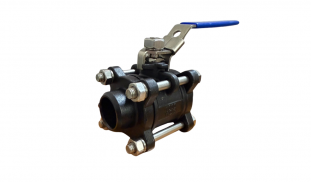

BALL VALVE CAST STEEL 3-PIECE FULL PORT BALL VALVE Model : BT-V3E *Pipe thread in accordance with ANSI B2.1, BS 21 1973, DIN 259/2999,ISO 228 *1000 PSI (69 BAR) W.O.G. *Mete...
-

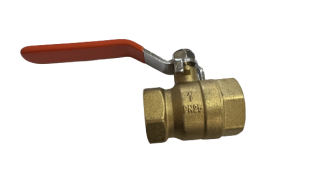

BALL VALVE BODY : BRASSConnection : ScrewedNominal pressure : PN 2.5MPaNominal diameter : DN15-DN100Using Temperature : -10C 120C
-
MODEL : UBV01 END CONNECTOR: THREAD, SOCKET WORKING PRESSURE: 150PSI
