HOME > GLOBE VALVE > Globe Valve Cast Iron (PN16)

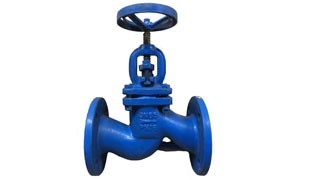

Globe Valve Cast Iron (PN16)

Tags: globevalve

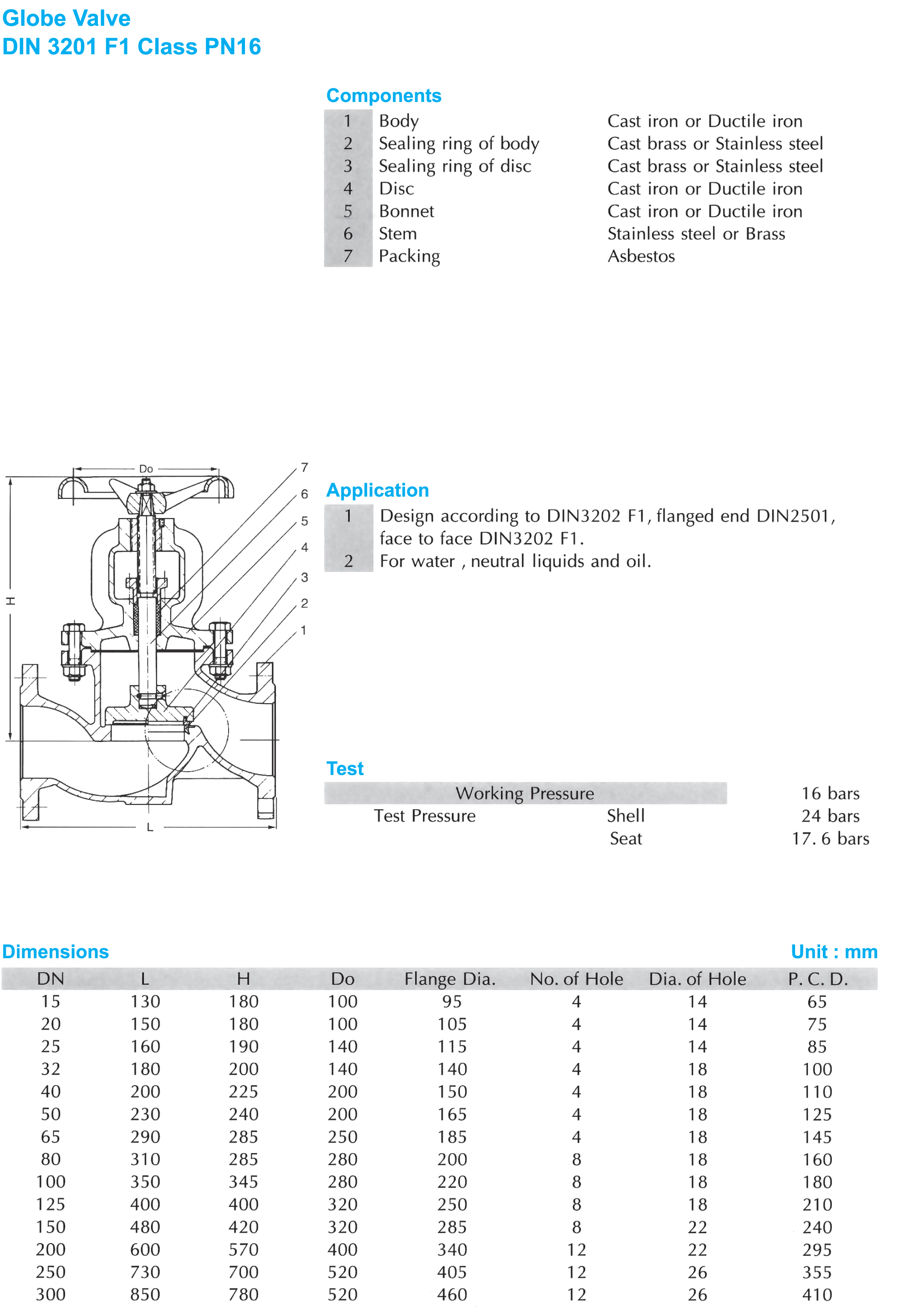

GLOBE VALVE

DIN 3201 F1 CLASS PN16

 COMPONENTS

  1.        BODY                                 CAST IRON OR DUCTILE IRON
  2.        SEALING RING OF BODY        CAST BRASS OR STAINLESS STEEL
  3.        SEALING RING OF DISC          CAST BRASS OR STAINLESS STEEL
  4.        DISC                                   CAST IRON OR DUCTILE IRON
  5.        BONNET                             CAST IRON OR DUCTILE IRON
  6.        STEM                                 STAINLESS STEEL OR BRASS
  7.        PACKING                             ASBESTOS

APPLICATION

  1.        DESIGN ACCORDING TO DIN3202 F1, FLANGED END DIN2501, FACE TO FACE DIN3202 F1.
  2.        FOR WATER, NEUTRAL LIQUIDS AND OIL.

TEST

WORKING PRESSURE     16 BARS

TEST PRESSURE      SHELL    24 BARS

                            SEAT      17.6 BARS

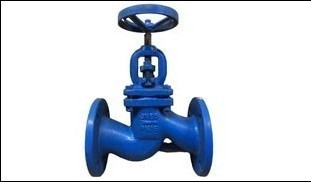

  • pn16.jpg
