Gate Valve Cast Iron

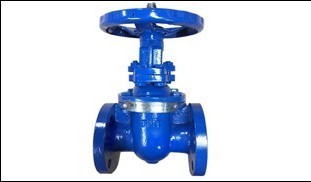

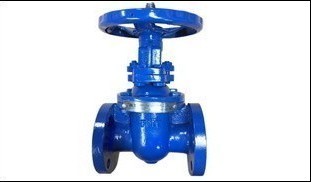

GATE VALVE O.S & Y

ANSI CLASS 125/BS5163 PN16

COMPONENTS

1. BODY:                            CAST IRON OR DUCTILE IRON
2. BONNET:                        CAST IRON OR DUCTILE IRON
3. DISC:                             CAST IRON OR DUCTILE IRON
4. GLAND FLANGE:             CAST IRON OR DUCTILE IRON
5. HAND WHEEL:               CAST IRON OR DUCTILE IRON
6. BODY SEAT RING:         CAST IRON OR CAST BRONZE
7. DISC SEAT RING:          CAST IRON OR CAST BRONZE
8.  YORK SLEEVE:             BRASS OR BRONZE
9. STEM:                           STAINLESS STEEL OR BRASS
10. STUD BOLT&NUT        CARBON STEEL
11. WHEEL NUT:              CARBON STEEL / BRASS
12. TAPER PIN:                CARBON STEEL
13. GLAND PACKING:        ASBESTOS
14. GASKET:                     ASBESTOS

APPLICATION

1. DESIGN ACCORDING TO ANSI B16.10 CLASS125/ BS5163: 1986, FLANGED END FACE TO ANSI B16.1-1975 CLASS 125 / BS4504 PN16.
2. FOR WATER, NEUTRAL LIQUIDS AND OIL, GAS

TEST

WORKING PRESSURE     125 PSI/16 BARS

TEST PRESSURE           SHELL    300 PSI/24 BAR

                                 SEAT      200 PSI/ 17.6 BARS
