HOME > Y-STRAINER > Y-Strainer Flange Cast Iron

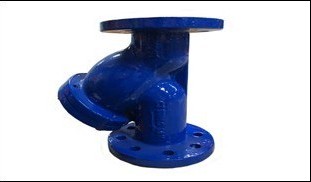

Y-Strainer Flange Cast Iron

Tags: y-strainer, flange, cast iron

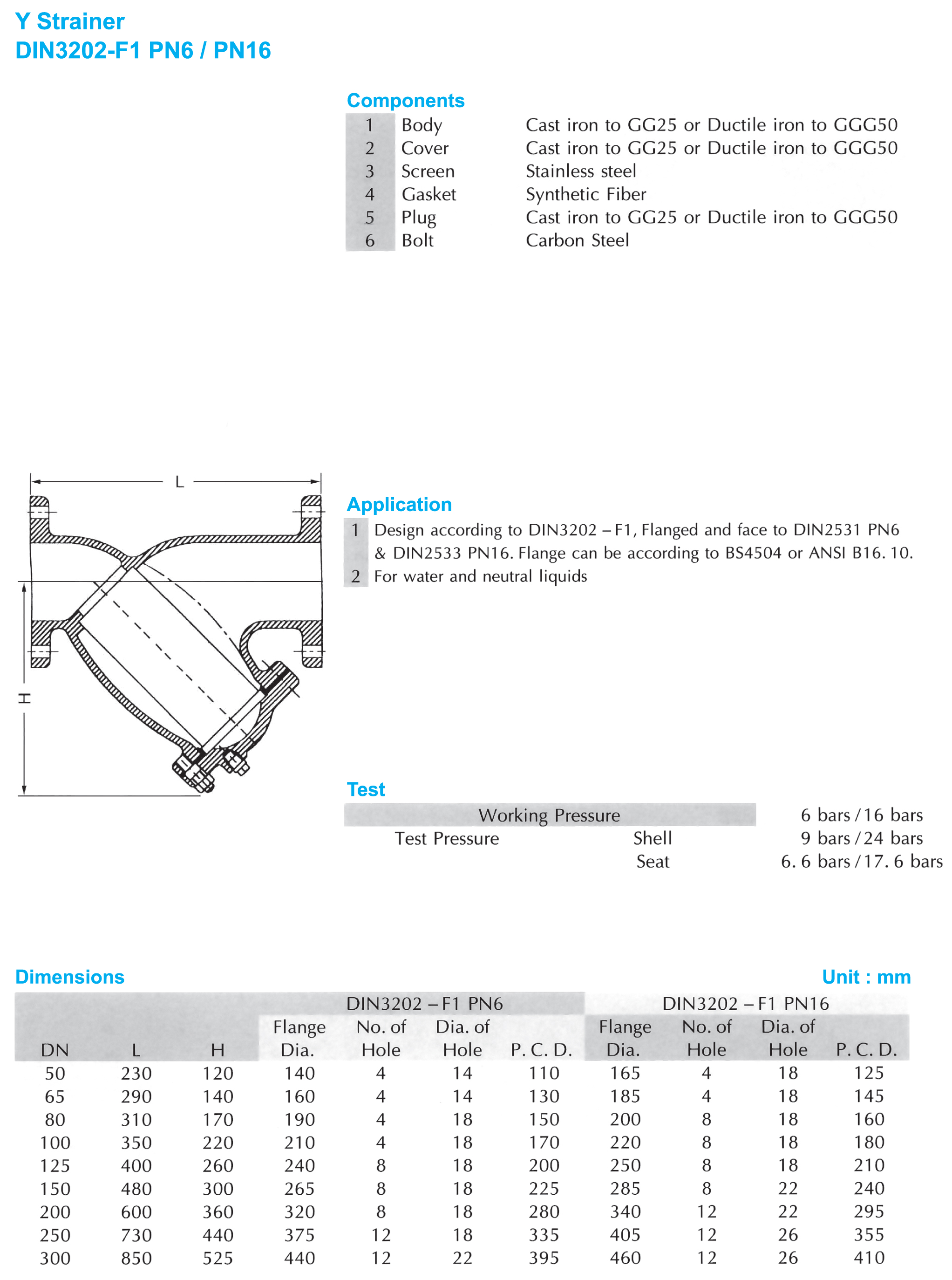

Y-STRAINER

DIN3202-F1 PN6/PN16

 COMPONENTS

  1.        BODY                      CAST IRON TO GG25 OR DUCTILE IRON TO GGG50
  2.        COVER                    CAST IRON TO GG25 OR DUCTILE IRON TO GGG50
  3.        SCREEN                  STAINLESS STEEL
  4.        GASKET                  SYNTHETIC FIBER
  5.        PLUG                     CAST IRON TO GG25 OR DUCTILE IRON TO GGG50
  6.        BOLT                      CARBON STEEL

APPLICATION

  1.        DESIGN ACCORDING TO DIN3202-F1, FLANGED AND TO FACE TO DIN2531 PN6 & DIN2533 PN16. FLANGED CAN BE ACCORDING TO BS4504 OR ANSI B16.10.
  2.        FOR WATER AND NEUTRAL LIQUIDS.

TEST

WORKING PRESSURE     6 BARS / 16 BARS

TEST PRESSURE           SHELL    9 BARS /24 BARS

                                 SEAT      6.6 BARS /17.6 BARS
