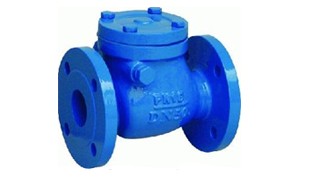

Swing Check Valve Cast Iron (PN16)

CHECK VALVE SWING TYPE

ANSI CLASS 125/BS5153 PN16

COMPONENTS

1.   BODY                    CAST IRON OR DUCTILE IRON
2.  COVER                   CAST IRON OR DUCTILE IRON
3.  DISC                      CAST IRON OR DUCTILE IRON
4.  DISC RING              CAST BRASS OR CAST BRONZ
5.  BODY RING             CAST BRASS OR CAST BRONZ
6.  HINGE PIN              STAINLESS STEEL TO 13% Cr

APPLICATION

1.  DESIGN ACCORDING TO ANSI B16.10 CLASS125/BS5153 PN16, FLANGED AND FACE TO ANSI B16.1 CLASS125/BS4504 PN16.
2.  COATING EPOXY PAINT, 200UM.

TEST

WORKING PRESSURE     125 PSI. /16 BARS

TEST PRESSURE        SHELL    300 PSI. /24 BARS

                              SEAT      200 PSI. /17.6 BARS
