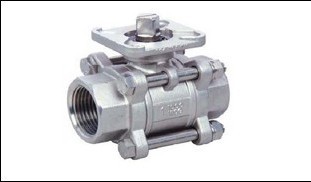

Ball Valve Direct Mounting Pad (1000LBS)

BT-V3MH

SIZE: 1/4”-4”

SCREWED END

BUTT WELD END

SOCKET WELD END

FEATURES:

• PIPE THREAD IN ACCORDANCE WITH ANSI B2.I, BS21 1973, DIN259/2999, ISO 288
• LUG BODY
• BLOW-OUT PROOF STEM/FULL PORT
• INVESTMENT CASTING BODY AND CAP
• 1000 PSI (69BAR) W.O.G.
• DIRECT MOUTING PAD FOR ISO STANDARD 5211
• SCREWED END, BUTT WELD END, SOCKET WELD END
• MATERIAL: ASTM-A35I-CF8M, ASTM-A351-CF8 & ASTM-A216-WCB
• OPTION:

SIMILAR DESIGN BUT WITH C STYLE CLIP DIN STANDARD, M3 LENGTH.
