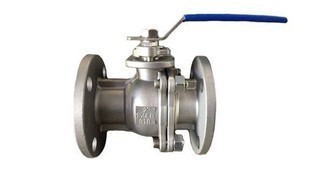

Ball valve SS304 (150LBS) 1

Tags: ss304-150lbs
ราคาขาย
4,240 THB
จำนวน:


1. MaterialSS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size1/2~8 inch ( DN15~DN200)
3. Thread standardISO9001 & CE
4. PortFull Port,Reducer Port
5. Working Pressure150LB~1500LB,PN16~PN100,JIS10K,JIS20K
6. Connection EndsFlange,BW,SW,Thread
7. Working Temp.-20~200ºC, or according to customer requirements for different industry.
8. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid
9. OperatedHandle operated, Locking device is option
10. Inspection & TestingAccording to API598






Technical Specification:

  1. Design & Manufacture standard: API 6D, API 608, BS 5351.
  2. Pressure & Temperature standard: ASME B16.34.
  3. Face to face dimension standard: ASME B16.10.
  4. Flange standard: ASME B16.5, ASME B16.47.
  5. Test & Inspect standard: API 598, API 6D.


Product Feature:

  1. Floating ball, full bore or reduce bore.
  2. ISO5211 mounting pad for option.
  3. Blow-out proof stem design.
  4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
  5. Fire-proof and anti-static design if need.
  6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
