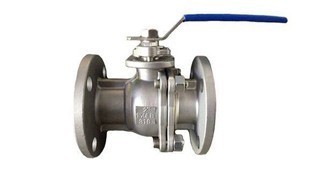

Ball valve SS304 (150LBS) 1-1/2''
|
ราคาขาย
|
0 THB
|
|
|
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
| 2. Size | 1/2~8 inch ( DN15~DN200) |
| 3. Thread standard | ISO9001 & CE |
| 4. Port | Full Port,Reducer Port |
| 5. Working Pressure | 150LB~1500LB,PN16~PN100,JIS10K,JIS20K |
| 6. Connection Ends | Flange,BW,SW,Thread |
| 7. Working Temp. | -20~200ºC, or according to customer requirements for different industry. |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handle operated, Locking device is option |
| 10. Inspection & Testing | According to API598 |
Technical Specification:
- Design & Manufacture standard: API 6D, API 608, BS 5351.
- Pressure & Temperature standard: ASME B16.34.
- Face to face dimension standard: ASME B16.10.
- Flange standard: ASME B16.5, ASME B16.47.
- Test & Inspect standard: API 598, API 6D.
Product Feature:
- Floating ball, full bore or reduce bore.
- ISO5211 mounting pad for option.
- Blow-out proof stem design.
- PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
- Fire-proof and anti-static design if need.
- Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
 |
 |
