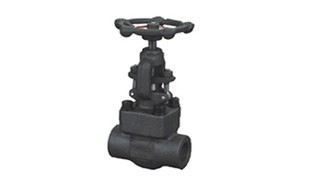

Globe Valve Forged Steel (Screwed , Socket) 1

FEMALE THREADED AND SOCKET WELED GLOBE VALVE

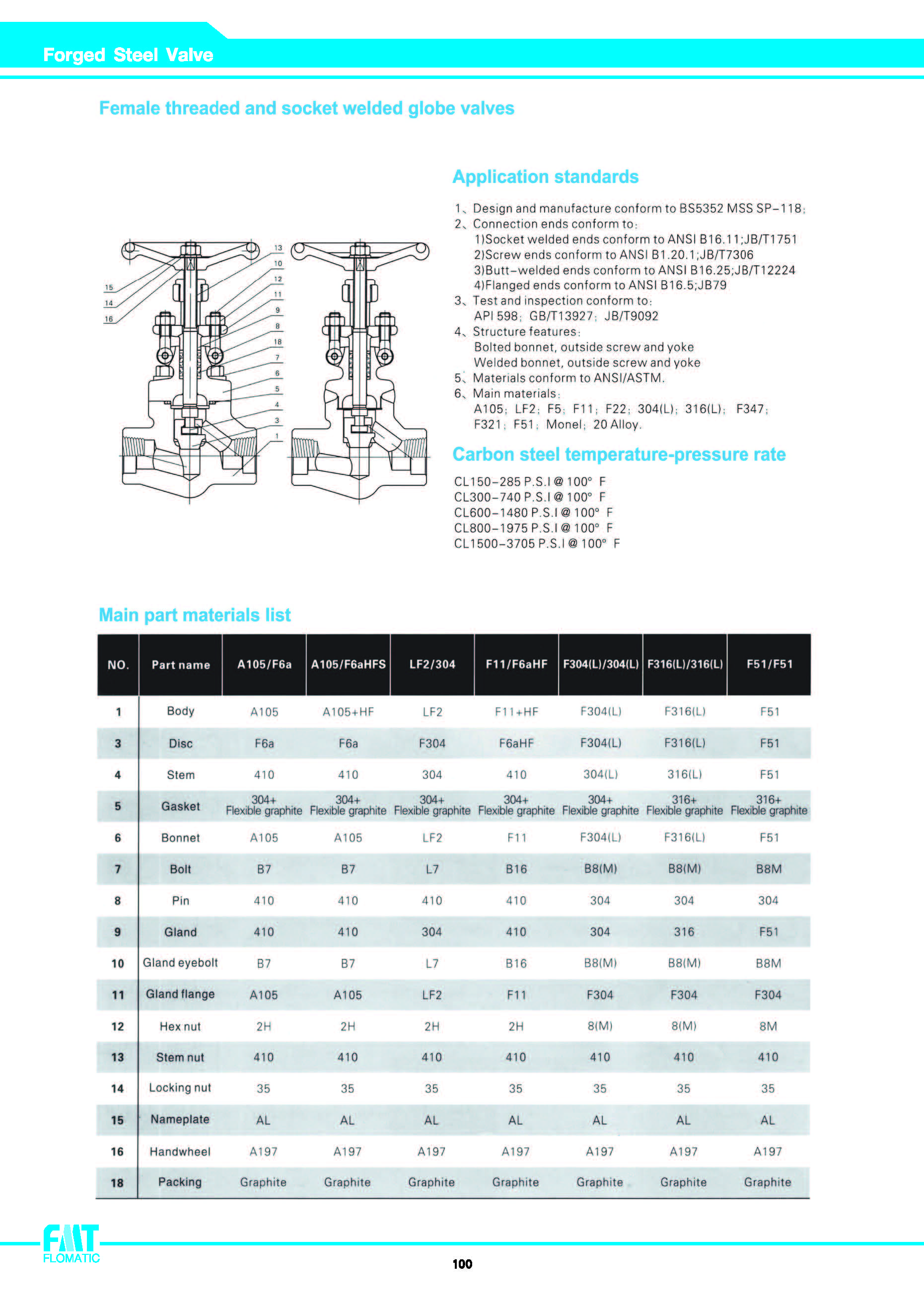

APPLICATION STANDARDS

1.        DESIGN AND MANUFACTURE CONFORM TO: BS5352, MSS SP-118;

2.        CONNECTION ENDS CONFORM TO:

             -          SOCKET WELDED ENDS CONFORM TO ANSI B16.11; JB/T1751

             -          SCREW ENDS CONFORM TO ANSI B1.20.1; JB/T7306

             -          BUTT WELDED ENDS CONFORM TO ANSI B16.25; JB/T12224

             -          FLANGED ENDS CONFORM TO ANSI B16.5; JB79

3.        TEST AND INSPECTION CONFORM TO: API 598; GB/T13927; JB/T9092

4.        STRUCTURE FEATURE: BOLTED BONNET, OUTSIDE SCREW AND YOKE WELDED BONNET, OUTSIDE SCREW AND YOKE

5.        MATERIALS CONFORM TO ANSI/ASTM.
6.        MAIN MATERIALS: A105, LF2, F5, F11, F22, 304(L), 316(L), F347, F321, F51, MONEL, 20ALLOY.

CARBON STEEL TEMPERATURE-PRESSURE RATE

                CL 150-285 P.S.I @ 100⁰F

                CL 300-740 P.S.I @ 100⁰F

                CL 600-1480 P.S.I. @ 100⁰F

                CL 800-1975 P.S.I. @ 100⁰F

                CL 1500-3705 P.S.I. @ 100⁰F
